Product Description————————

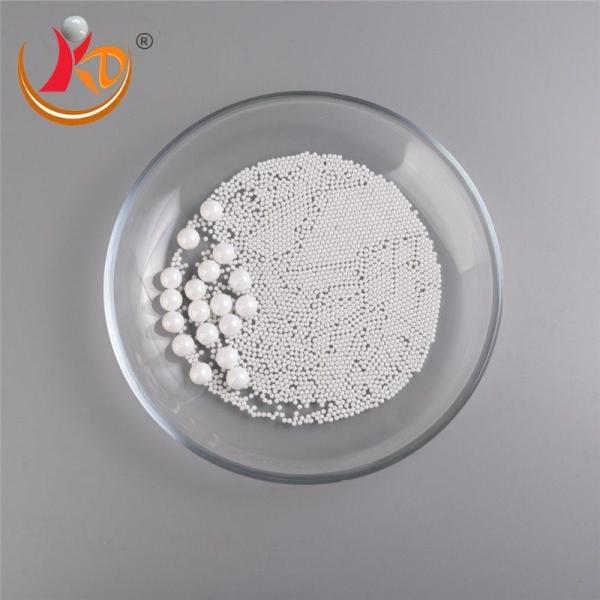

Unlock precision and efficiency in your grinding applications with
our 5mm White Yttria Stabilized Zirconia Ceramic Beads.
Specifically designed for grinding processes, these beads stand out
as a superior choice for industries and researchers seeking
high-performance milling solutions.
Versatility in Applications:
Suited for a diverse range of applications, these beads find
utility in industries such as pharmaceuticals, electronics, and
materials research.
Fine Particle Size Control:
Achieve fine particle size control with these beads, allowing
researchers and industries to tailor their grinding processes to
specific requirements.
Chemical Inertness:
The chemical inertness of these beads ensures compatibility with
various substances, making them suitable for a broad spectrum of
chemical environments.
High Impact Strength:
Despite their small size, these beads possess high impact strength,
contributing to efficient and reliable grinding performance.
Application————————
1. Particularly suitable for vertical stirring mills, horizontal
roller ball mills, vibrating mills and various high linear, speed
pin- type sand mills.
2. For wet or dry ultrafine dispersion and grinding of pastes and
powders without contamination.
3. Perfect grinding media with good flatness, smooth surface,
bright,high density and high strength.
4. Wear and corrosion resistant product: coating, textile, pigment,
dyeing.
5. High strength, high tenacity product: magnetic material,
piezoelectric ceramics, dielectric ceramics.
6. Pollution prevention: medicine, food, cosmetics.
7. Ceramics: electronic ceramics, refractory ceramics, structural
ceramics.
Properties and technique parameters————————
| Performance | Unit | Parameter |
| Component | Wt% | 95±0.2%Zro2+5±0.2%Y2O3 |
| Density | g/cm3 | 6.00-6.05 |
| Hardness | GPa | >11 |
| Elasticity Modulus | GPa | 200 |
| Thermal conductivity | W/m.k | 3 |
| Coefficient of thermal Expansion | 10*10-6/ºC(20-400) | 9.6 |
| Crush Strength | KN | ≥20(φ7mm) |
| Bending toughness | MPam1/2 | 8 |
Features————————
Yttria Stabilized Zirconia Composition:
Crafted from high-quality yttria stabilized zirconia, these ceramic
beads offer enhanced stability, durability, and wear resistance.
Optimal Size for Grinding Applications:
The 5mm size of these beads is optimized for grinding processes,
providing effective particle size reduction and consistent results.
Precision Grinding:
Achieve precision grinding with these ceramic beads, allowing for
controlled and fine particle size reduction in various milling
applications.
High Wear Resistance:
Benefit from the beads' high wear resistance, ensuring prolonged
durability and minimal wear even in demanding grinding conditions.
Low Contamination Levels:
These beads maintain low contamination levels, making them suitable
for applications where sample purity is critical, such as in
pharmaceutical and research settings.
Matching Machine——————
Available grinding jars in full sizes:
Zirconia ball mill jar, alumina ball mill jar, Agate ball mill jar,
Tungsten ball mill, hard metal mill jar and etc.
