    Zirconia Ball Mill Jar For Laboratory Small Planetary Ball Mill

    Ask Lasest Price
    Price : Negotiable
    Brand Name : Kingda
    Model Number : 50ML-3L
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Delivery Time : 3-7 Days
    Supply Ability : 5000 pcs / Month
    • Product Details
    • Company Profile

    Zirconia Ball Mill Jar For Laboratory Small Planetary Ball Mill

    Product Description

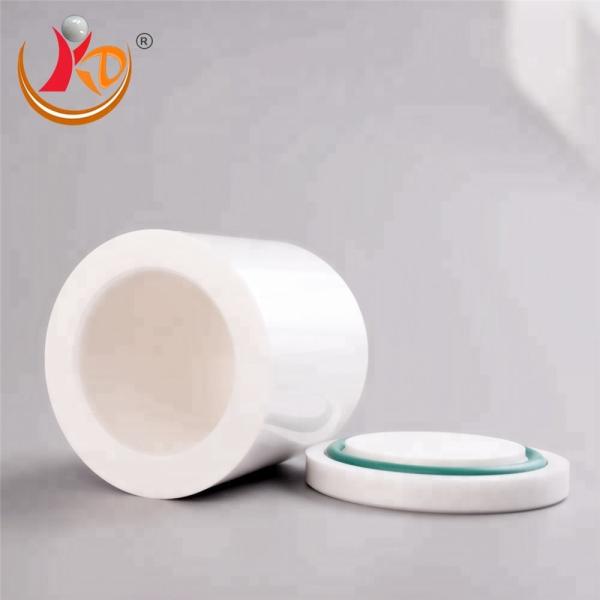

    Highly polished YSZ (Yttrium stabilized ZrO2) zirconium oxide jars, 60 times the hardness of regular steel, highly wear-resistant and resistant to acid and solvents. They are extensively applied to in the field of Paint, Ink, Geology, Metallurgy,Electronics, Pigment, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, Environmental Protection and so on. Each jar set includes grinding jar, jar lid and silicon sealing gaskets

    Zirconia Grinding Beads

    Zirconia material has advantages of high hardness, high strength, high tenacity, high wear resistance and good corrosion resistance which is widely applied in fields of ceramics, fire proofing material, machinery, electronic, photics, Aeronautics and astronautics, biology and chemicals and etc. Zirconia mill jar is particularly suitable for vertical stirring mill, horizontal rolling mill, vibration mill, and various high-wire-speed sanding stick pins, etc
    Application

    1. Particularly suitable for vertical stirring mills, horizontal roller ball mills, vibrating mills and various high linear, speed pin- type sand mills.
    2. For wet or dry ultrafine dispersion and grinding of pastes and powders without contamination.
    3. Perfect grinding media with good flatness, smooth surface, bright,high density and high strength.
    4. Wear and corrosion resistant product: coating, textile, pigment, dyeing.
    5. High strength, high tenacity product: magnetic material, piezoelectric ceramics, dielectric ceramics.
    6. Pollution prevention: medicine, food, cosmetics.
    7. Ceramics: electronic ceramics, refractory ceramics, structural ceramics.

    Features

    • high hardness
    • good wear resistance
    • high mechanical strength
    • low wear loss
    • corrosion resistance
    • high thermal expansion rate
    • non-greased and self lubrication
    • light weight with low density, decrease in centrifugal load

    Product Paramenters

    Properties and technique parameters
    Performance
    Unit
    Parameter
    Component
    Wt%
    94.6% ZrO2, 5.2% Y2O3
    Filled Density
    Kg/l
    3.5(φ5mm)
    Density
    g/cm3
    5.95-6.00
    Hardness
    GPa
    >11
    Elasticity Modulus
    GPa
    200
    Thermal conductivity
    W/m.k
    3
    Coefficient of thermal Expansion
    10*10-6/ºC(20-400)
    9.6
    Crush Strength
    KN
    ≥20(φ7mm)
    Bending toughness
    MPam1/2
    8

    Specification Parameters
    Remarks: 1. Size deviation within ±2mm; 2. Weight deviation within ±0.2KG
    Application Fields
    Zirconia Ball Mill Jar For Laboratory Small Planetary Ball Mill
    Zirconia Ball Mill Jar For Laboratory Small Planetary Ball Mill
    FAQ
    1.Q:What's product your company supply?
    A.We can supply yttrium stab.zirconia bead,cerium stab.zirconia bead,zirconia silicate bead,high alumina ball, agate
    ball,tungsten carbide ball, ball mill grinding jar, tungsten carbide ball, zirconium powder,ceramic structual elements etc.

    2. Q: What is your MOQ?
    A: 1KG. We accept smaller quantity but price is higher.

    3. Q: Can you provide free samples?
    A: Yes, the buyers just afford shipping cost .

    4. Q: What is your production time for bulk order?
    A: 7~30 days, according to order quantity.

    5. Q: What is your normal package?
    A: Woven bag or barrel ,drum,carton box and pallet.
    6. Q: What is your payment term?
    A: T/T 30%-70% Deposit, balance against copy of B/L.
    L/C at sight,Western Union, paypal,Visa,etc
