Product Description————————

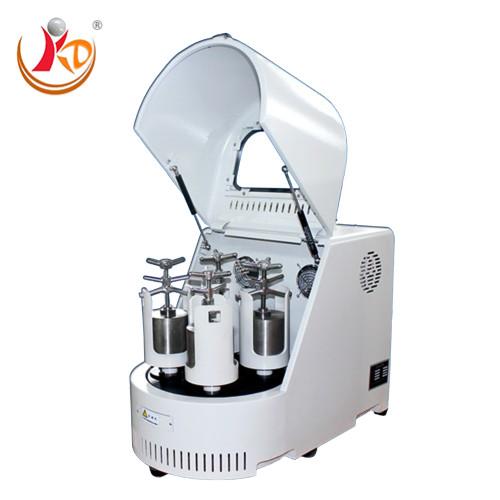

1. Vertical planetary ball mill is a necessary device of high-tech
materials mixing, fine grinding, sample making, new product
development and small batch production.
2. Planetary ball mill owns small volume, high efficiency, low noise
and functional features which is a ideal equipment for R&D
institution, university, enterprises laboratory to get samples
(each experiment can get four samples at the same time).
3. It gets powder samples under the vacuum state when equipped with
vacuum ball mill tank.
4. 0.4L planetary ball milling machine has four ball grinding tanks
installed on one turnplate. When the turnplate rotates, the tank
axis makes planetary movements and the balls in the tanks grinds
and mixes samples in high speed movement.
5. The product can smash and blend various products of different
materials and granularity with dry or wet methods. Minimum
granularity of grinded products can be as small as 0.1 micron
(i.e.) 1.0×10-4mm)
6. It is widely used in the fields of Geology, Mining, Metallurgy,
Electronics, Construction Material, Ceramics, Chemical Engineering,
Light Industry Medicine, Environmental Protection etc.
Technical Specifications————————
| Drive Mode | gear drive / belt drive |
|---|
| Operation Mode | 2 / 4 grinding tanks working together |
|---|
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
|---|
| Feeding Granularity | soil material ≤10mm, other materials ≤3mm |
|---|
| Output Granularity | Minimum 0.1um |
|---|
| Rotational speed ratio | 1:2 (0.4L,2L,4L); 1:1.5(12L,20L) |
|---|
| Rotation Speed | 0.4L:0~600rounds/min; 2L:0~580rounds/min
4L:0~530rounds/min 20L:0-280 rounds/min |
|---|
| Speed Regulation Mode | variable-frequency-control-type and program-control-type stepless
speed regulation;
manual or automatic timed; positive or negative revolving |
|---|
Max. continuous operating time
full-load) | 72 hours |
|---|
Application————————
Food Sample Preparation:
Planetary ball mills are employed for the grinding and mixing of
food samples, ensuring the uniform distribution of components such
as spices, pigments, and additives. They play a crucial role in
food quality control and research and development.
Pigment and Ink Production:
In the manufacturing of pigments and inks, planetary ball mills are
utilized to grind pigment particles, ensuring uniform color and
high pigment dispersion, thereby enhancing the quality of the final
product.
Cosmetic Formulation and Production:
Applied in cosmetic production, planetary ball mills enable the
precise grinding and mixing of cosmetic ingredients, ensuring a
smooth texture and even distribution of colors in the final
product.
Waste Treatment and Recycling:
Planetary ball mills find application in waste treatment,
facilitating efficient grinding and mixing processes that
contribute to the recycling of waste materials. For instance, they
can grind discarded plastics into reusable granules.
Features————————
Stable revolving speed of the gear transmission ensures the
consistency and repeatability of the experiment.
Planetary movement principle is adopted in the machine, which has
high speed, large energy, high efficiency, small Granularity.
Four powder samples from different sizes and different materials
can be produced at one time.
The machine is controlled by frequency converter, you may choose
ideal rotating speed according to expected experimental result. The
converter is equipped with device of under voltage and over-current
to protect the motor.
The planetary ball mill has functions of timing power off,
self-timing forward and reversal rotating. You may choose freely
any operation modes of one-way direction, alternation, succession,
time setting according to experimental needs, so as to improve
efficiency of grinding.
Technical features of Tencan Ball Mill: Low center of gravity,
stable performance, compact structure, easy operation, reliable
safety, lower noise, small loss.
Safety switch is installed on the machine to prevent safety
accident if the safety cover is opened while machine is running.
