High Efficiency Vertical Laboratory Planetary Ball Mill for
Grinding
| Model No. | KD-4L |
| Max volume of each matched Jar | 1000ml(Max),500ml (Min) |
| Voltage | 220V - 50Hz |
| Machine Size | 750*470*564mm |
| Machine Weight | 80Kg without mill jar |
| Work mode | 2 or 4 jars working together |
| Mill mode | Dry / wet milling |
| Speed Frequency | Adjusting |
| Drive Mode | Gear drive |
| Rotational Speed | 70-670 r/min, adjusting |
| revolution: rotation | 1:2 |
| Material Capacity | material + mill balls < 2/3 volume |
| Input Granularity Size | < 10mm for soft material, < 3mm for hard material |
| Output Granularity Size | minimum 0.1μm |
| Field of application | Geology, Mining, Metallurgy, Electronics, Construction Material,
Ceramics, Chemical Engineering, Light Industry Medicine,
Environmental Protection etc. |
| Feed material | Soft, hard, brittle, fibrous, cellulose, herb, glass, soil, ore,
pharmacy, chemical, fluorescent, pigment etc. |
| Type of grinding jars | Stainless steel, zirconia, alumina, nylon, PU, tungsten, PTFE etc.,
vacuum jars are available as well. |
| Type of grinding medium | Stainless steel balls, zirconia balls, alumina balls, PU balls,
steel carbon balls, tungsten balls, etc. |
| Max. continuous operating time (full-load) | 72 hours |
| Interval operation | yes, with direction reversal |
| Certificate | ISO 9001. CE certificate |

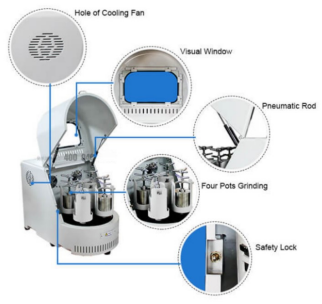

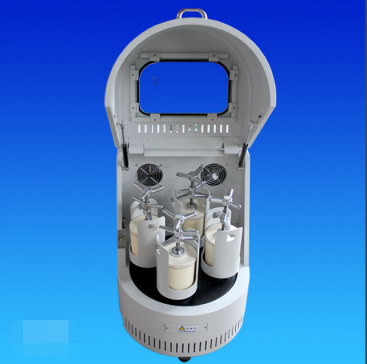

Photos of KD-4L
Mill Pots and Mill Balls
Mill pot
Materials of jars for choosing:
Agate, Zirconia, Alumina ceramic (Corundum), Tungsten Carbide,
Stainless steel,PU (Polyurethane), PU with stainless steel liner,
PTFE (Polytetrafluoroethylene), Nylon etc.
Vacuum jars are available as well.
Mill balls
Materials of balls for choosing:
Agate, Zirconia, Alumina, Tungsten Carbide, Stainless steel,PU,
PTFE, Nylon, Carbon steel, PU etc.
Sizes for choosing: 1mm, 3mm, 5mm, 8mm, 10mm, 12mm, 15mm, 20mm,
25mm, 30mm
Zirconia jars and zirconia balls Stainless Steel jar and stainless steel balls
