Product Description————————
1. Zirconia material has advantages of high hardness, high strength, high
tenacity, high wear resistance and good corrosion resistance which
is widely applied in fields of ceramics, fire proofing material,
machinery, electronic, photics, Aeronautics and astronautics,
biology and chemicals and etc.
2. Zirconia griding mill jar is particularly suitable for vertical stirring
mill, horizontal rolling mill, vibration mill, and various
high-wire-speed sanding stick pins, etc

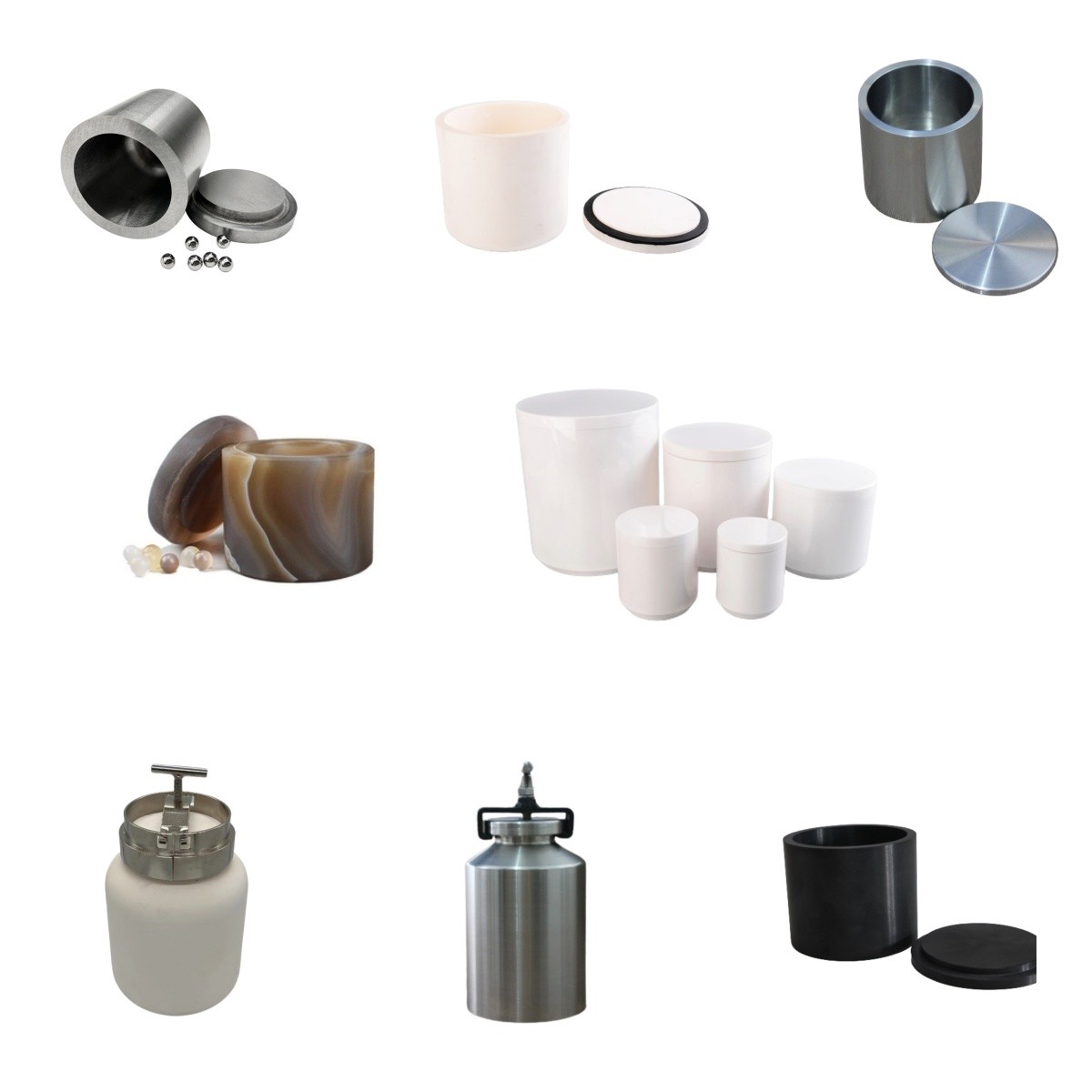

3.We also produce zirconia, alumina,agate and tungsten carbide jar
for Retsch ,Fristch lab ball mill, such as Retsch PM100,PM200,PM400
planetary ball mill, Retsch disc vibratory ball mill RS200 ,Mixer
Mill MM 400 and Fritsh P6,P7,etc.
Application————————
1. Particularly suitable for vertical stirring mills, horizontal
roller ball mills, vibrating mills and various high linear, speed
pin- type sand mills.
2. For wet or dry ultrafine dispersion and grinding of pastes and
powders without contamination.
3. Perfect grinding mill jar with good flatness, smooth surface,
bright,high density and high strength.
4. Wear and corrosion resistant product: coating, textile, pigment,
dyeing.
5. High strength, high tenacity product: magnetic material,
piezoelectric ceramics, dielectric ceramics.
6. Pollution prevention: medicine, food, cosmetics.
7. Ceramics: electronic ceramics, refractory ceramics, structural
ceramics.
Properties and technique parameters————————
| Performance | Unit | Parameter |
| Component | Wt% | 95%Zro2+5%Y2O3 |
| Density | g/cm3 | 6.0-6.05 |
| Hardness | Moh's | 9 |
| Elasticity Modulus | GPa | 200 |
| Thermal conductivity | W/m.k | 3 |
| Coefficient of thermal Expansion | 10*10-6/ºC(20-400) | 9.6 |
| Crush Strength | KN | ≥20(φ7mm) |
| Bending toughness | MPam1/2 | 8
|
VOLUME OF JAR| Volume of Jar | Inner Diameter
(mm) | External Diameter
(mm) | Inner Depth (mm) | Height of without lid (mm) | Total Height
(mm) | Weight (g) |
| 50ml | 38 | 55 | 52 | 60 | 67 | 610 |
| 100ml | 50 | 65 | 58 | 66 | 75 | 835 |
| 250ml | 74 | 92 | 70 | 78 | 88 | 1760 |
| 500ml | 84 | 100 | 100 | 108 | 118 | 2300 |
| 1L | 108 | 128 | 128 | 138 | 150 | 4780 |
| 2L | 138 | 158 | 140 | 150 | 162 | 6750 |
| 3L | 138 | 158 | 198 | 208 | 220 | 8400 |
| Remarks:1. Size deviation within ±2mm； 2. Weight deviation within
±0.2KG |
Features————————
Exceptional Hardness:
Zirconia grinding beads are known for their exceptional hardness,
providing superior wear resistance during grinding processes. This
characteristic ensures a longer lifespan and consistent performance
in various applications.
High Density:
With high density, Zirconia beads generate significant impact
forces during grinding, facilitating efficient particle size
reduction and dispersion. This makes them effective in achieving
fine and uniform grinding results.
Chemical Inertness:
Zirconia is chemically inert, preventing reactions with most
chemicals. This inertness ensures the purity of the samples being
ground, making Zirconia grinding beads suitable for applications
with stringent purity requirements.
Corrosion Resistance:
Zirconia exhibits excellent corrosion resistance, ensuring
durability and stability in corrosive environments. This makes
Zirconia grinding beads suitable for a wide range of industrial
applications.
Package & Shipping————————
Package Type:
PE Form + Cartons / Woodern cases;
Can be dispatched according to customr's requirement
Port:
Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port.
Delivery time:
Within 3-7 working days from the date of payment receipt
Factory————————
Product Flow————————
FAQ————————
1.Q: What is the size in your products?
A: Our common size is 50ml-3L. We can also produce according to your
request.
2.Q: What is your terms of delivery?
A: FOB, CFR, CIF.
3.Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first before
production, but the customers have to pay the courier cost.
4.Q: What is your production time?
A: Generally, it will take 3-15 days after receiving your advance
payment. The specific delivery time depends on the items and the
quantity of your order.
5.Q: What is your terms of payment?
A: T/T 30% as deposit, 70% balance against the copy of original B/L.
Or 100% L/C at sight. We'll show you the photos of the products and
the copy of original B/L before you pay the balance.
