Technical Datas Model Number:KD-WC-400 Material:Tungsten Carbide -WC-YG15 Volume:400ml Max Loading Capacity : 2/3 capacity of the grinding jar Density:14.95g/m³ Abrasion Resistance : Very good Attachment : silicon sealing gasket and lid Compatible Samples:Hard, abrasive samples Applicable Grinding Balls : mixed Tungsten Carbide ball Applicable instrument:VIBRATORY DISC MILL RS RS 200/300
With polished surface, highly wear-resistant and resistant to acid
and alkali and high hardness, tungsten carbide ball mill jars can
meet the vast majority of metal powder crushing and refining.
Tungsten carbide ball mill jar is used as milling jar of planetary
ball mill,virbratory disc mill matched with tungsten carbide balls,
which is suitable for grinding materials in high hardness such as
hard alloy powder, diamond powder, and silicon carbide powder, etc.
We have mass-produced various types of ball mill jars for Retsch
and Fristch from Germany brand.
ForRetsch grinding jar:50ml,80ml,125ml tungsten carbide,agate, zirconium oxdie, alumina
oxide, grinding jar for Retsch planetary bal mill PM100, PM100CM,
PM200, PM 400; 25ml,35ml,50ml tungsten carbide,zirconia oxide jars
for Retsch Mix mill MM 500; 50ml,100ml,250ml and 500ml tungsten
carbide ,agate, zirconia oxide for Retsch vibratory disc ball mill
RS200,RS300.
For Fritsch grinding jar: 250ml and 500ml agate,zirconia,alumina oxide, grinding jar for
Fritsch P6.
We have inventory of all the above ball mill jars. Just let us talk
more!
Physical Parameters:
Composition
%
Grade
Specific Gravity
g/cm3
Compression modulus Mpa
Hardness
HRA
Bending strength Mpa
Elasticity modulus Gpa
WC: 92%
Cobalt: 8%
YG8
≥14. 6
56
89. 0
≥2320
510.0
Dimesion for our regualar avaliable Tungsten carbide milling jars
Volume of Jar
External Diameter (mm)
Inner Diameter (mm)
Height of without lid
(mm)
Total Height (mm)
50ml
49
38
52
56
100ml
63
52
59
63
250ml
85
73
69
75
500ml
104
90
96
103
1L
131
115
110
117
1.5L
131
115
172
181
2L
170
156
121
128
Remarks: Size deviation within ±0.5mm,weight deviation within ±50-100gram
We also can provide YG6,YG15 WC.

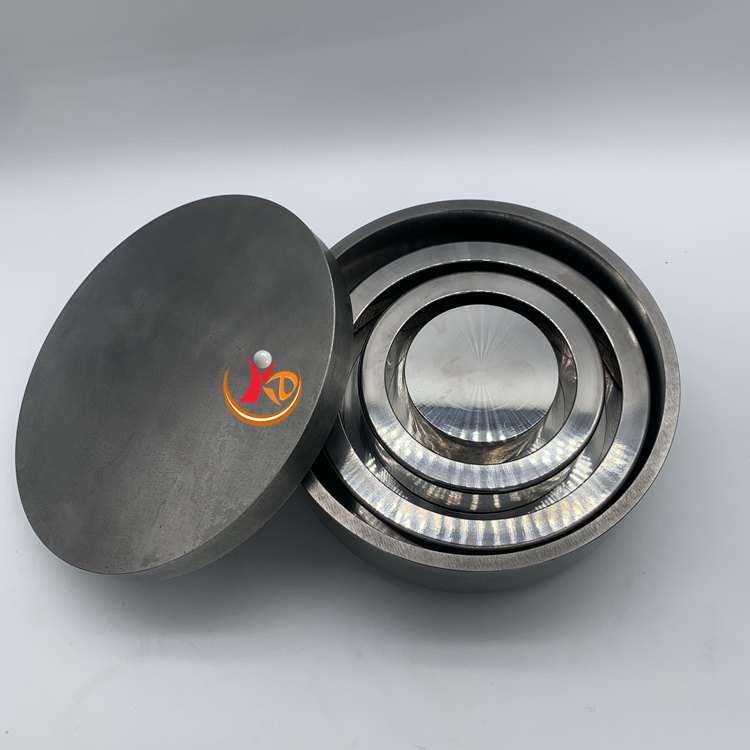

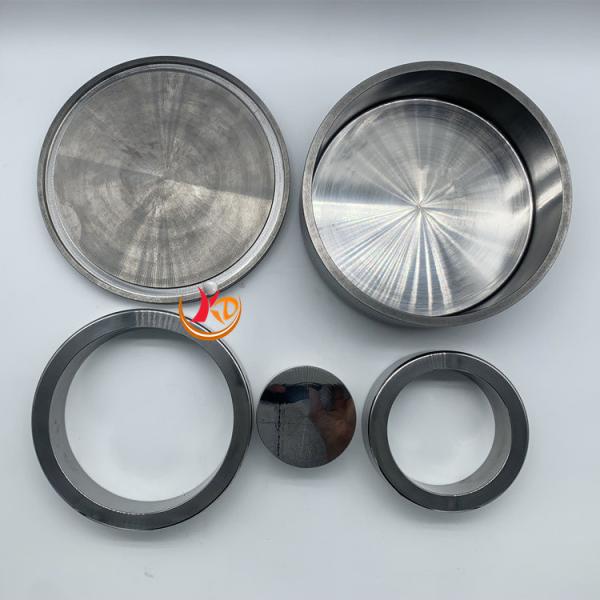

Image show of 400ml-500ml tungsten carbdie jar only fit in Retsch
VIBRATORY DISC MILL RS 300
