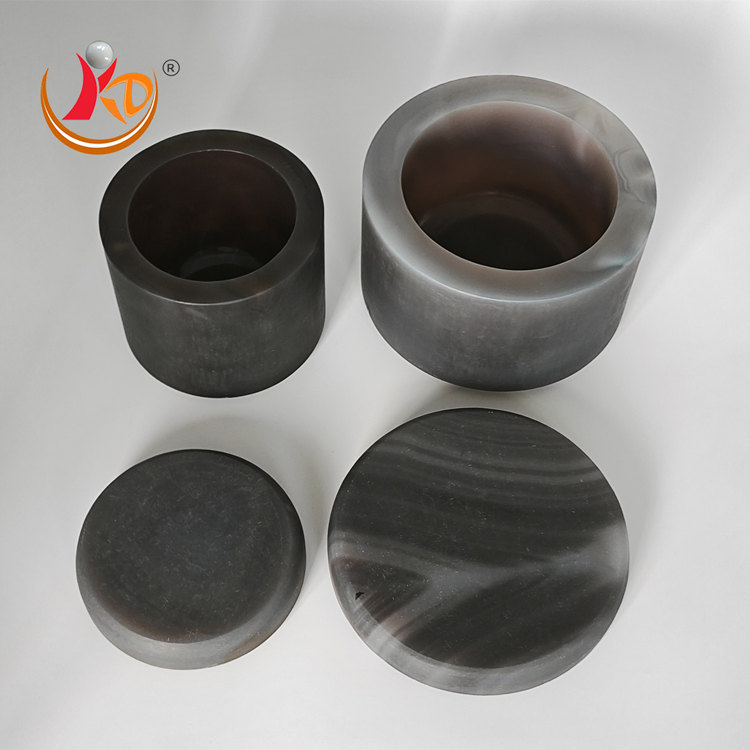

Agate Grinding Bowl with Lid and Seal Ring Comfort mill Jars for
pulverisette 6
250ml Agate grinding bowls without casing used for FRITSCH
pulverisette 3
/P4/P5/P6
No. 50.2055.00
Grinding bowl volume: 250 ml
Useful capacity: 30 … 125 ml
Weight net: 1340g
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard samples
High purity natural Brazilian agate ball mill grinding jars, highly
wear-resistant and resistant to acids (except HF) and solvent,
these jars are used whenever small quantity of samples need to be
grinded without contamination. Each jar set includes grinding jar,
lid, rubber sealing gasket and mixed agate grinding balls. The
grinding jars are extensively applied to in the fields of Ceramics,
Electronics, Light Industry, Paint, Ink, Medicine, Food, Geology,
Chemical Engineering and so on.jar lid, silicon sealing gasket and
different sizes of mixed stainless steel grinding balls.
We have mass-produced various types of ball mill jars for Retsch
and Fristch from Germany brand.
Retsch grinding jar: 50ml,80ml,125ml agate, zirconium oxdie, alumina oxide, tungsten
carbide grinding jar for Retsch planetary bal mill PM100, PM100CM,
PM200, PM 400; 25ml,35ml,50ml zirconia oxide ,tungsten carbide jars
for Retsch Mix mill MM 500; 50ml,100ml,250ml,agate, zirconia oxide
and tungsten carbide for Retsch vibratory disc ball mill
RS200,RS300.
Fritsch grinding jar: 250ml and 500ml agate,zirconia,alumina oxide, grinding jar for
Fritsch P6,P5,P4.
We have inventory of all the above ball mill jars. Just let us talk
more!
| Agate jar Applications | size reduction, mixing,grinding,dispersing, triturating |
| Field of application | construction materials, environment / recycling, geology /
metallurgy, glass / ceramics |
| Feed material | medium-hard, brittle, fibrous |
| Size reduction principle | pressure, friction |
| Material feed size* | < 15 mm |
| Final fineness* | < 20 µm |
| Batch size / feed quantity* | 15- 250 ml depending on size of grinding set |
Image of imported raw materials from Brazil
Element Analysis for Agate Grinding Jars
| General Specifications |
| Main Material | agate -SiO2 |
| Chemical Composition |
| Element | Share % |
| Silicon Oxide -SiO2 | 99.91 |
| Aluminium Oxide -Al2O3 | 0.20 |
| Iron Oxide -Fe2O3 | 0.01 |
| Calcium Oxide -CaO | 0.01 |
| Magnesium -Mg | 0.01 |
| Sodium Carbonate -Na2O | 0.20 |
| Potassium Carbonate -K2O | 0.01 |
| Manganese Oxide -MnO | 0.01 |
| Physical and Mechanical Properties |
| Specific Gravity | 2.65 g/cm |
| Hardness | 6.5~7 Mohs |
Typical sample Material Agate grinding jar fit in Fritsh Planetary
Mono Mill PULVERISETTE 6
materials such as cement,cement clinker, ceramics, coal, coke,
concrete,corundum, glass, metal oxides,minerals, ores, silicate, slag, soil,
etc.
Dimesion for our Regualar Avaliable Agate Ball Mill Jar Only (offer
OEM & ODM Service)
| Volume of Jar | Outside Diameter (mm) | Inner Diameter (mm) | Inner Depth (mm) | Height of without lid (mm) | Total Height (mm) |
| 50ml | 65 | 45 | 37 | 49 | 58 |
| 100ml | 73 | 50 | 52 | 62 | 70 |
| 150ml | 90 | 62 | 55 | 70 | 80 |
| 250ml | 93 | 73 | 70 | 80 | 90 |
| 400ml | 105 | 82 | 80 | 93 | 103 |
| 500ml | 104 | 86 | 90 | 100 | 108 |
| 1L | 133 | 107 | 114 | 126 | 140 |
| 1.5L | 167 | 137 | 103 | 118 | 133 |
| 2L | 156 | 130 | 155 | 170 | 188 |
| note: 1. Size deviation within ±0.2-0.5mm; 2:One set includes: jar
+ lid + rubber sealing gasket. 3. Agate covered 1mm stainless steel
outside as per request. |
Choice of Grinding Jars & Grinding Balls
In order to prevent excessive abrasion, the hardness of the
grinding jars used and of the
grinding balls must be higher than that of the material used.
Normally, grinding jars and
grinding balls of the same material should be chosen.
| Recommendation For Matching Solutions About Mill Jars & Materials |
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high
temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high
temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to
be protected under special atmosphere. | Vacuum mill jar |
| Matching Solutions for Mill Jars & Balls |
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
|
| Agate Mill jar | 1 | | | | |
| Alumina/Corundum Mill Jar | 2 | 1 | | 2 | |
| Stainless Steel Mill Jar | | | 1 | | |
| Zirconia Mill Jar | | 2 | | 1 | |
| Nylon Mill Jar | 2 | | | 1 | |
| PTFE Mill Jar | 1 | | | 2 | |
| Polyurethane Mill Jar | 1 | | | 2 | |
| Tungsten Carbide Mill Jar | | | | 2 | 1 |
| 1 means: most suitable , 2 means: suitable |
Features of Agate Grinding Jars
- High purity, low contamination to the samples
- High cost-effective, low wear and long lifetime
- High specific gravity, high grinding efficiency
- Highly wear resistant to acid and solvent
- Highly polished, smooth, easy to clean, low abrasion to the
equipment
- High mechanical strength, good toughness, impact resistance, no
broken beads
- Mainly used for lab planetary ball mill machines,such as Fritshc
P6,P5,P4
